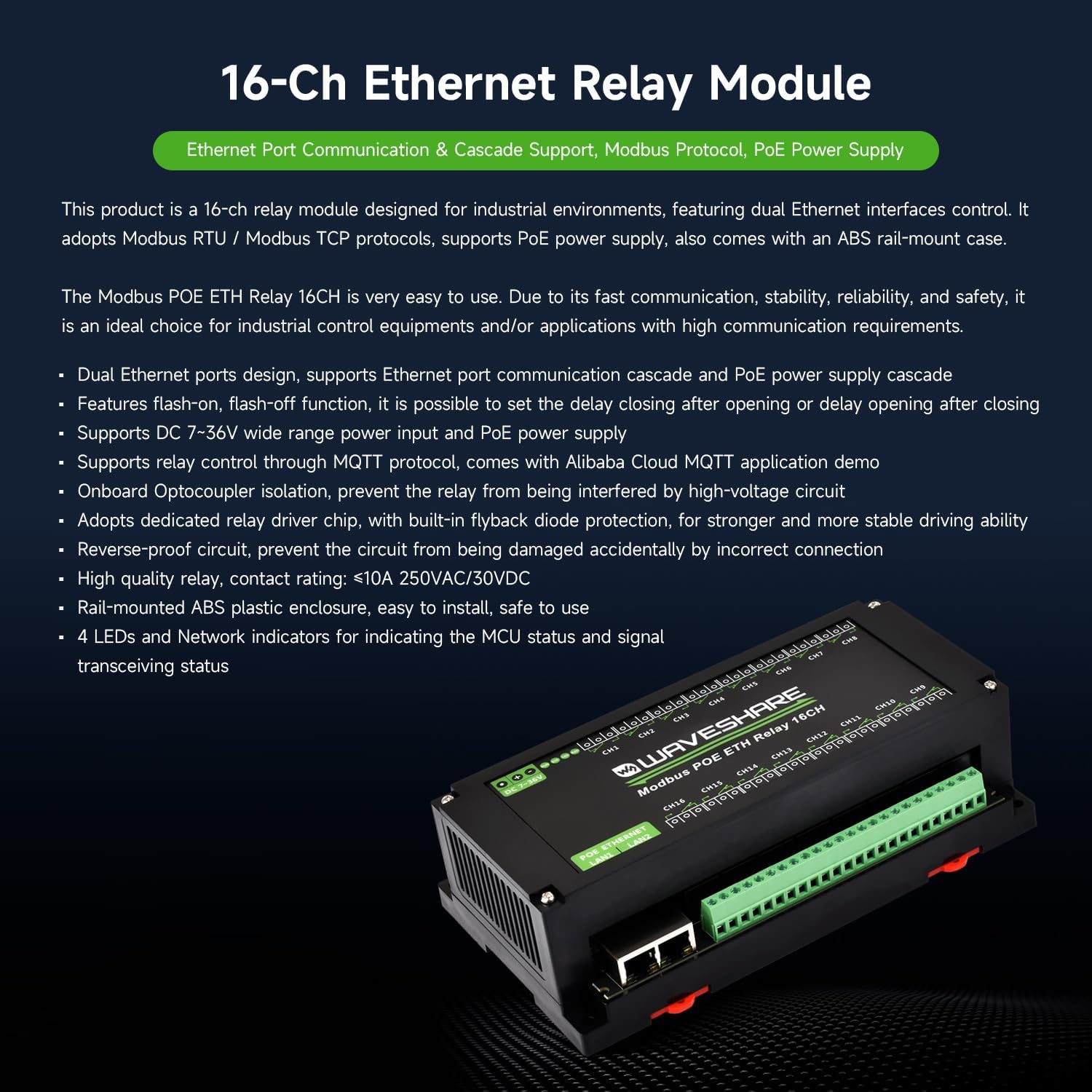

Waveshare 16-Ch Ethernet Module, Modbus RTU/TCP, Ethernet Communication, Support PoE, Various Isolation & Protection Circuits, Industrial Rail-Mount
$73.99
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by www.gooskystore.com
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$73.99
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by www.gooskystore.com
Free 30-day returns Details
Product details
| Management number | 209090771 | Release Date | 2026/03/29 | List Price | $29.60 | Model Number | 209090771 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Dual Ethernet Ports with PoE Support:This 16-channel relay module is equipped with dual Ethernet ports, allowing for cascade communication via Ethernet ports, ensuring easy expansion and a reliable network connection. It also supports Power over Ethernet (PoE), eliminating the need for separate power cables and simplifying the overall system setup, ideal for environments with limited power outlets.

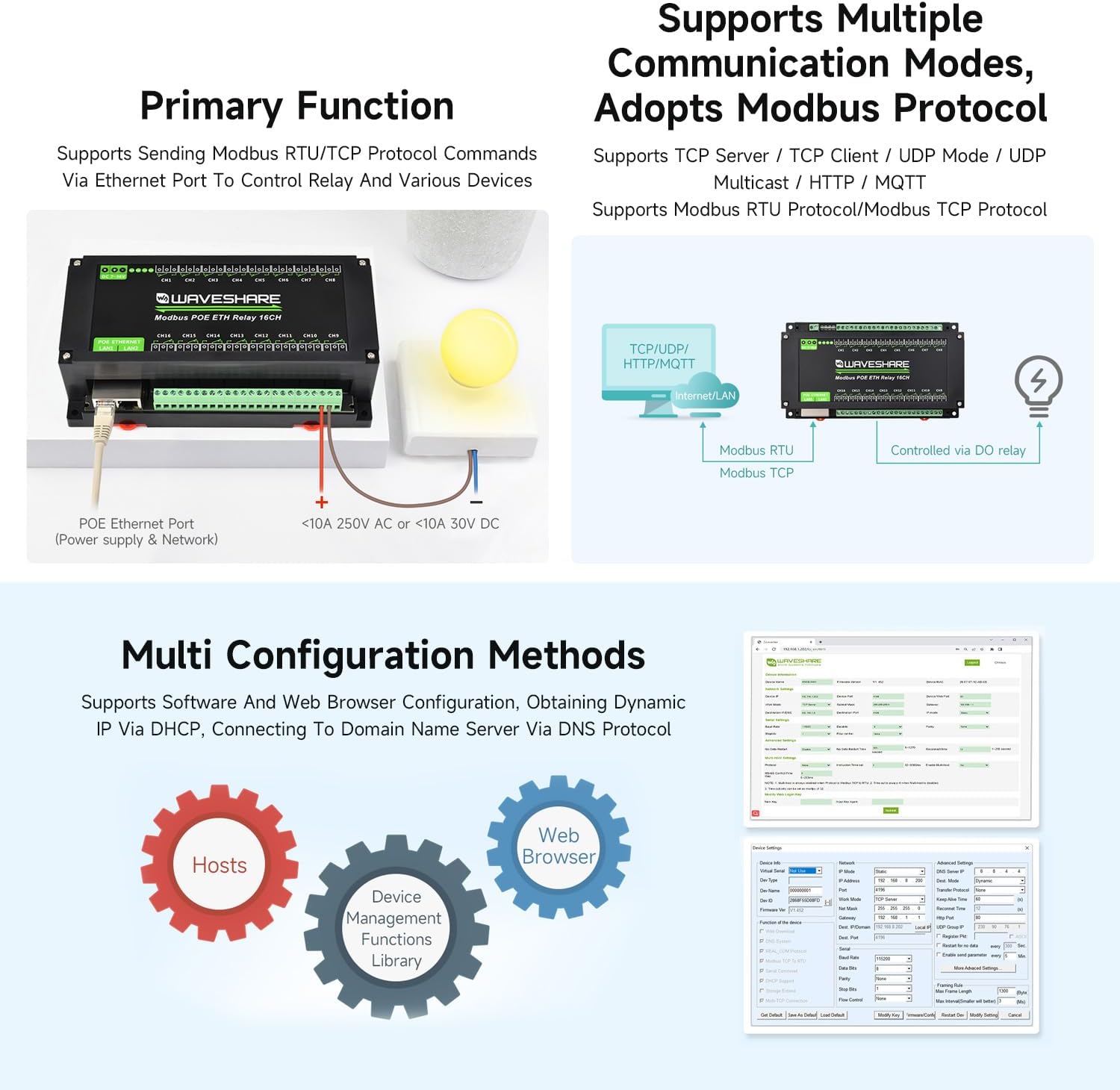

- Modbus RTU/TCP Protocol Compatibility & MQTT Support: Supporting both Modbus RTU and Modbus TCP protocols, the module offers flexible and industry-standard communication options. It is also compatible with the MQTT protocol for relay control, and comes with a demo application for Alibaba Cloud MQTT, making it simple to integrate the device into cloud-based industrial automation systems or IoT networks.
- Wide Power Input Range & Safety Features: The relay module supports a wide DC power input range of 7-36V, accommodating various power supply options in industrial settings. Additionally, it features onboard optocoupler isolation to protect the relays from high-voltage interference, ensuring reliable operation and preventing damage from electrical surges.
- Enhanced Relay Protection and Control Functions:This relay module is equipped with a dedicated relay driver chip with built-in flyback diode protection, allowing for stable and strong driving performance. It also includes a flash-on, flash-off function with delay settings for opening or closing relays, offering greater flexibility for time-sensitive control applications.

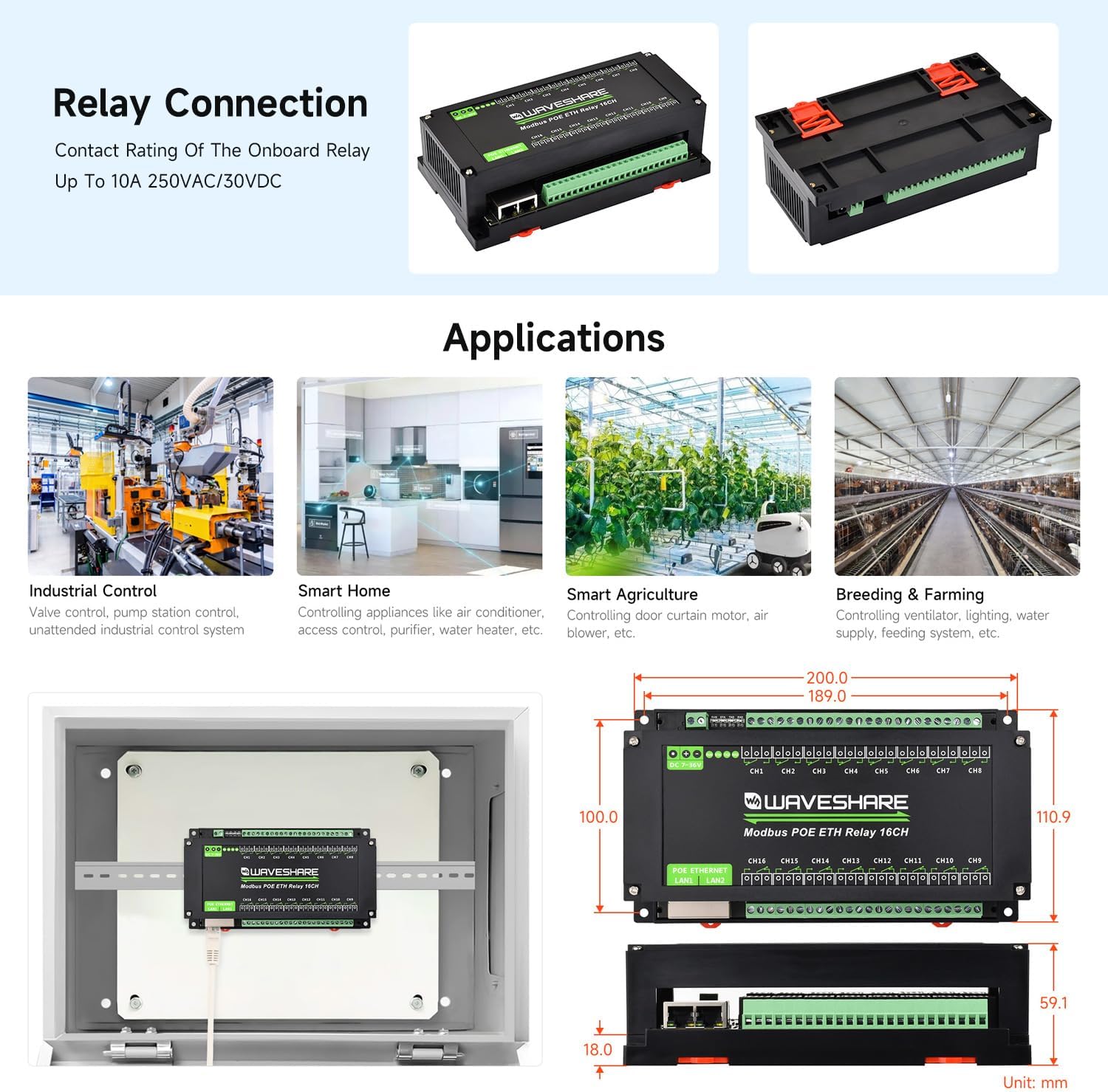

- Durable Enclosure & Easy Installation:Designed for industrial environments, the module comes in a sturdy ABS rail-mount enclosure, ensuring easy mounting and safe operation. The enclosure is optimized for rugged environments and supports quick installation. The device also includes 4 LEDs and network indicators, providing clear status updates on MCU activity and signal transmission, enabling quick troubleshooting and monitoring.
- Rich WiKi Resources: We provide official Wiki resources, please visit our store and click the wiki page to get resources.
| Brand | waveshare |
|---|---|
| Model Name | Modbus POE ETH Relay 16CH |
| Manufacturer | Waveshare |
| Model Number | Modbus POE ETH Relais 16CH |
| BuiltIn Media | Modbus POE ETH Relay 16CH |
| Number of Ports | 2 |
| Compatible Devices | Industrial Automation Devices, IoT Devices, Servers, Computing Devices with Modbus RTU/TCP or MQTT Support |
| Warranty Description | 1 year |
| Memory Slots Available | 16 |
| Graphics Card Interface | Integrated |
| Number of Ethernet Ports | 2 |
| Main Power Connector Type | Screw terminal |
