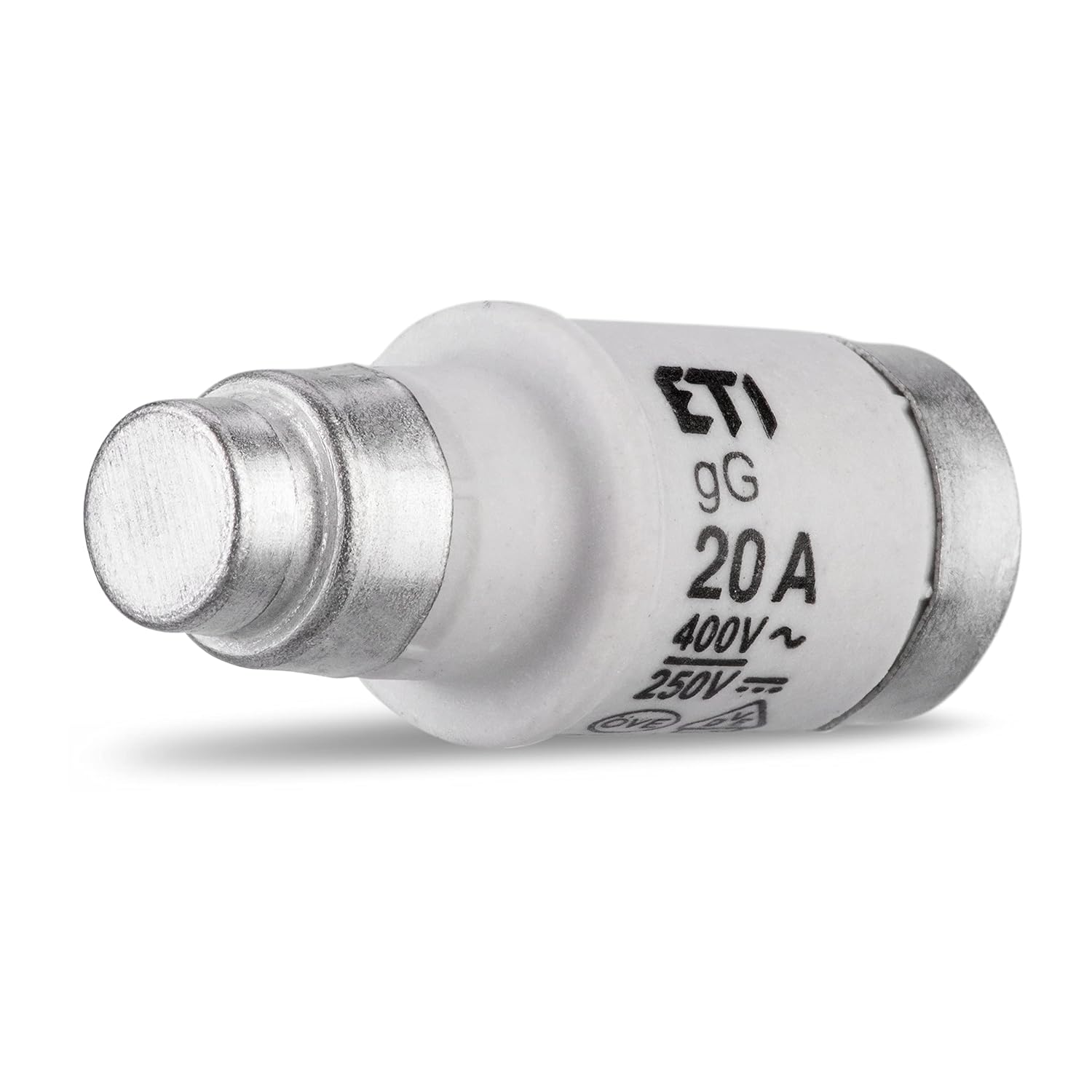

REV Neozed 0515025555 Fuse D02/E18 20 A 250 VDC / 400 VAC Pack of 10 Grey
Product details
| Management number | 218125753 | Release Date | 2026/05/03 | List Price | $7.75 | Model Number | 218125753 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Neozed fuse elements belong to the class of fuses. Safety fuse for screw cap size E18. How it works: If a limit value is exceeded by current and duration, the fuse will melt off and interrupt the circuit. Trigger characteristics: fast wearing (gG). The load capacity of the screw fuse is 20 A at a rated voltage of 250 VDC / 400 VAC. Material: ceramic. Screw lock set dimensions (WxDxH): 85 x 40 x 33 mm. Weight: 115g, Fuse identification colour: blue. Outer diameter of foot contact [ØA]: 10.9 mm, outer diameter head contact: E18, outer diameter "belly": 15 mm. Safety note: The installation may only be carried out by trained specialists in accordance with the applicable installation regulations. Please contact an approved electrical specialist. Item number: 0515025555
- Neozed fuse elements belong to the class of fuses. Safety fuse for screw cap size E18
- How it works: If a limit value is exceeded by current and duration, the fuse will melt off and interrupt the circuit. Trigger characteristics: fast wearing (gL/gG)
- The load capacity of the screw fuse is 20 A at a rated voltage of 250 VDC / 400 VAC
- Material: ceramic. Screw lock set dimensions (WxDxH): 85 x 40 x 33 mm. Weight: 115 g, fuse identification colour: blue
- Outer diameter foot contact [ØA]: 10.9 mm, outer diameter head contact: E18, outer diameter "belly": 15 mm
| Color | gray |
|---|---|
| Model | 0515025555 |
| Voltage | 400 Volts |
| Brand Name | REV |
| Unit Count | 1.0 Count |
| Item Weight | 115 Grams |
| Part Number | 0515025555 |
| Manufacturer | REV Ritter GmbH |
| Material Type | Ceramic |
| Mounting Type | Through-Hole Mount |
| Current Rating | 20 Amps |
| Item Type Name | Fuse D02/E18 20A -10 pieces, 250VDC / 400VAC |
| Item Dimensions | 0.63 x 0.63 x 1.18 inches |
| Maximum Current | 20 Amps |
| Specification Met | (Unset) |
| Included Components | Set of fuses (10 pieces) |
| Global Trade Identification Number | 03838895000532 |
