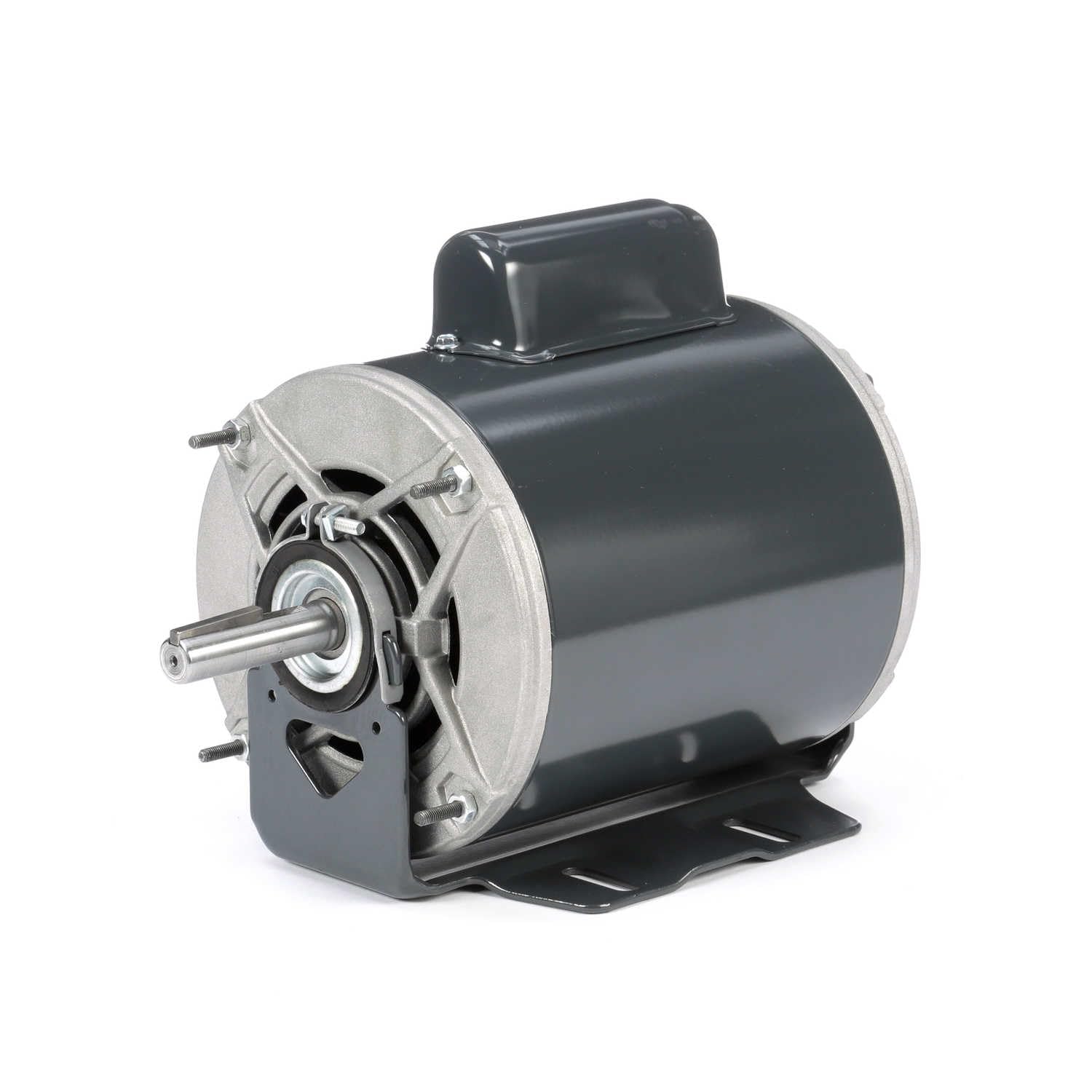

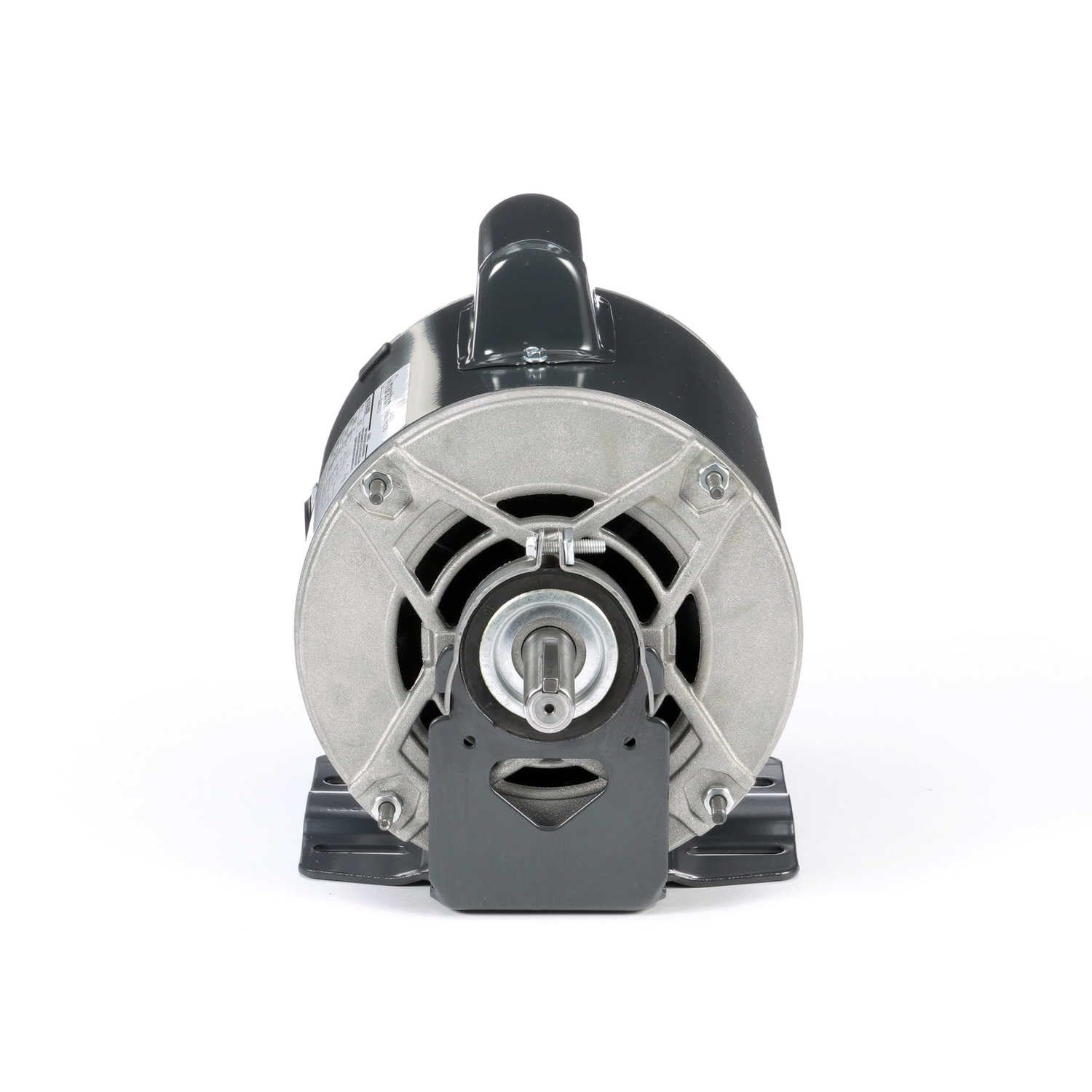

Marathon 4686 56Z Frame Open Drip Proof 5KC46LN0269X Belt Drive Motor, 3/4 hp, 1725 RPM, 115/208-230 VAC, 1 Split Phase, 1 Speed, Ball Bearing, Resilient Ring Mount
Product details
| Management number | 218552373 | Release Date | 2026/05/03 | List Price | $209.60 | Model Number | 218552373 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
This Marathon 5KC46LN0269X belt drive motor is single split phase with one-speed operation. It runs at 3/4 hp, with a maximum speed of 1725 rpm. It operates at 115/208-230 VAC, 13.3/6.5-6.6 Amp. The motor has a 56Z frame with open drip proof (ODP) enclosure, resilient ring mounting, and ball bearing system. It has auto protection. Weight is 25 pounds.
- Belt drive motor is single split phase with one-speed operation
- Runs at 3/4 hp, with a maximum speed of 1725 rpm
- 56Z frame with open drip proof (ODP) enclosure, resilient ring mounting, and ball bearing system
| UPC | 722856040275 |
|---|---|
| Model | M4686 |
| Speed | 1725 RPM |
| Voltage | 230 Volts |
| Brand Name | Marathon Electric |
| Horsepower | 0.75 Horsepower |
| Unit Count | 1 Count |
| Item Weight | 16 ounces |
| Part Number | 4686 |
| Manufacturer | Marathon Electric |
| Material Type | Alloy Steel |
| Included Components | Electric Motor |
| Global Trade Identification Number | 00722856040275 |
| EU Spare Part Availability Duration | 5 Years |
