JK2510 Multichannel Battery Tester Resistance 0.01mΩ~33.000KΩ Voltage 0.0001V~60.000VDC with 4.3 inch LCD Display

JK2510 multi-channel battery tester is a newly designed multi-channel battery tester with high accuracy and high stability. It can quickly complete the separation of 10 groups of battery voltage and internal resistance; it is controlled by a high-performance ARM microprocessor. Real color 4.3 inch LCD display in Chinese and English, the operation is more convenient. Widely used in battery manufacturers to quickly sort contact resistance, battery voltage and battery internal resistance. The new and improved sampling circuit can measure any kind of battery. In addition, the instrument has a professional sorting function and sorting signal ring setting, which is applied to the automatic sorting system to complete the fully automatic assembly-line testing. It can also be equipped with a USB interface for remote control and data acquisition and analysis, which is very suitable for mass production of batteries.

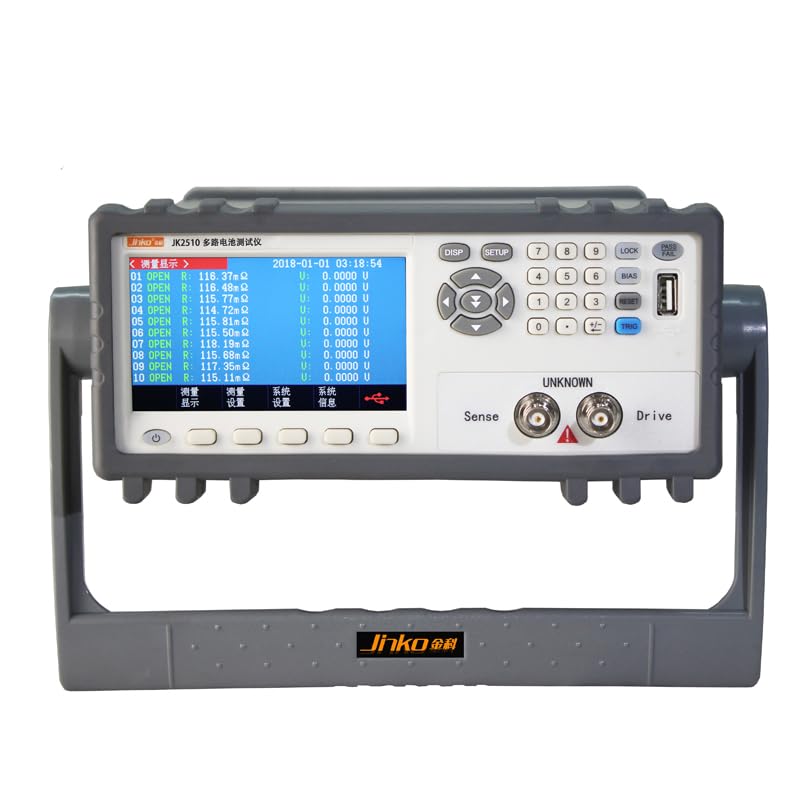

• True color 4.3-inch LCD can display 10 channels of voltage and internal resistance value at the same time, and each channel can be set independently comparator, JK2510 can test resistance: 0.001mΩ ~ 33.000kΩ Voltage: 0.0001V ~ 60.000VDC, new and improved sampling circuit Can measure any kind of battery.

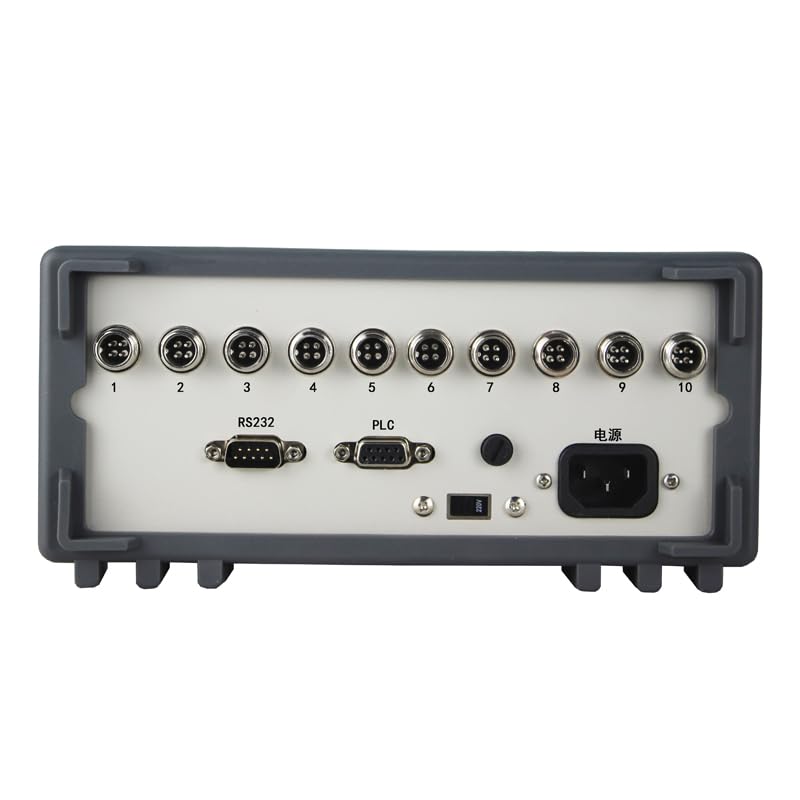

• Accuracy: ±(0.5% of reading + 3 counts); Resolution: 1μΩ; Measurement speed: 20 times per second (standard configuration includes RS232 and PLC interfaces).

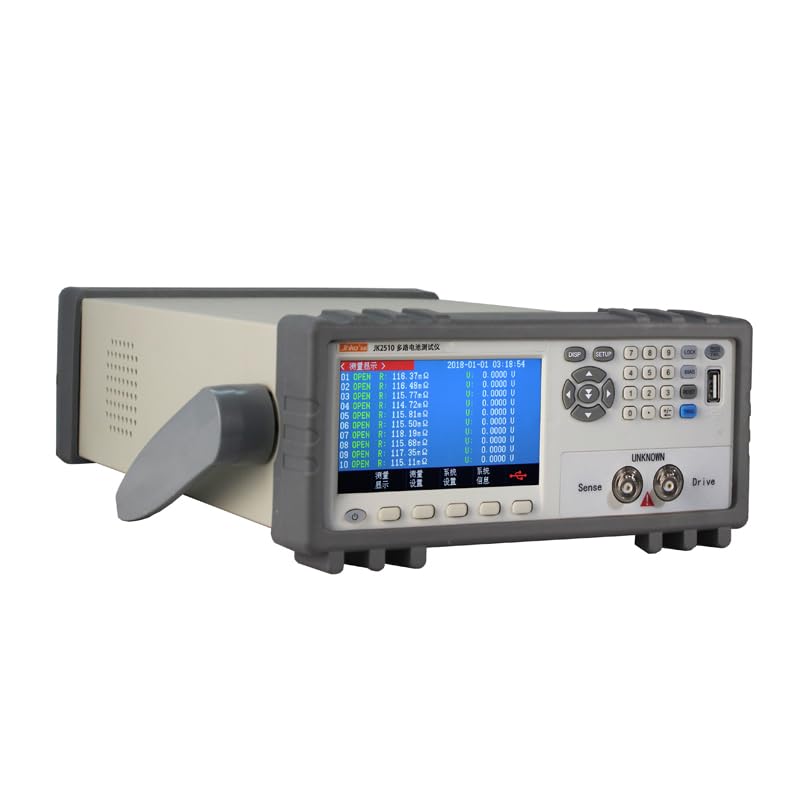

• Test line damage detection, true color 4.3 inch TFT-LCD display, keyboard lock and data retention function and U disk data recording
• Power requirement:Voltage:195VAC～245VAC, Frequency：50Hz, Power: Max.15VA
• Signal source:AC 1kHz, Test current<150mA;Range:3 ranges, automatic and manual;Display result:Direct reading,ΔABS,Δ% sorting result;Correction:Full range short circuit clear zero;Trigger:Internal trigger,Manual trigger, External trigger and Remote trigger
