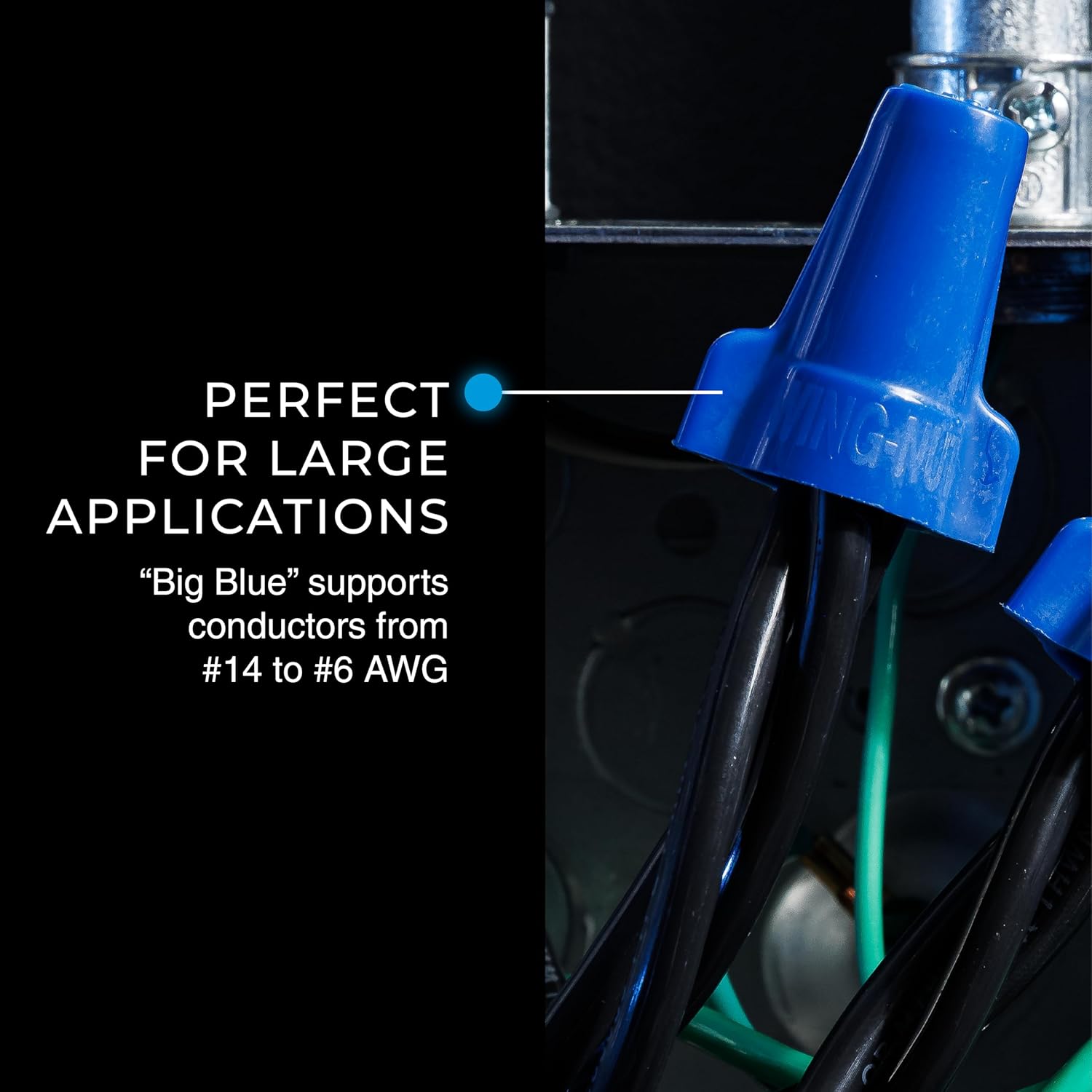

Ideal Electrical 30-454P Wing-Nut Wire Connector, Model 454 Blue, (25/Bag), Large
Product details
| Management number | 218987963 | Release Date | 2026/05/03 | List Price | $5.24 | Model Number | 218987963 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
The IDEAL Wing-Nut Wire Connector provides an easy, secure grip when connecting a wide range of wires. The specially designed contoured wings make for extra torque and quick work on any electrical job. The wide range, live-action spring is flexible enough to handle small combinations with ease but then expands to accept large combinations when you need it. It can also be reused on same size or larger combinations for quick and easy circuit changes and additions.
- Copolymer shell expands for smooth, progressive tightening providing dependable connections
- Deep skirt helps protect against flash-over and turned-back strands for maximum dielectric protection
- Contoured wing design for secure grip, live-action spring expands to accept wire shape and size with no pre-twisting required
- Tough UL 94-Volt-2 flame-retardant shell rated at 221F, UL listed to 486C and CSA certified to C22.2 #188
- Product Specifications: For use with #14 to #6 AWG copper conductors, Minimum wire range: three # 12 AWG, maximum wire range: one # 6 with ywo # 8 AWG, Rated to 600-Volt max, 1000-Volt signs and fixtures, Use on bare copper wire
| UPC | 783250739660 |
|---|---|
| Color | Blue |
| Gauge | not_applicable |
| Model | 30-454P |
| Terminal | Wing-nut |
| Stud Size | not_applicable |
| Brand Name | Ideal Industries |
| Unit Count | 1.0 Count |
| Item Weight | 6.4 ounces |
| Part Number | 30-454P |
| Manufacturer | IDEAL INDUSTRIES |
| Material Type | Copper |
| Connector Type | Connector_type |
| Item Type Name | Wing Nut |
| Maximum Voltage | 600 Volts (AC) |
| Number of Items | 1 |
| Connector Gender | Male |
| Contact Material | Not_applicable |
| Specification Met | UL |
| Temperature Rating | 221 F |
| Included Components | Hardware, Hardware, Nut, Bolt, Sets |
| Insulation Material Type | not_applicable |
| Item Dimensions L x W x H | 4.5"L x 3.6"W x 3.3"H |
| Global Trade Identification Number | 00783250739660 |
