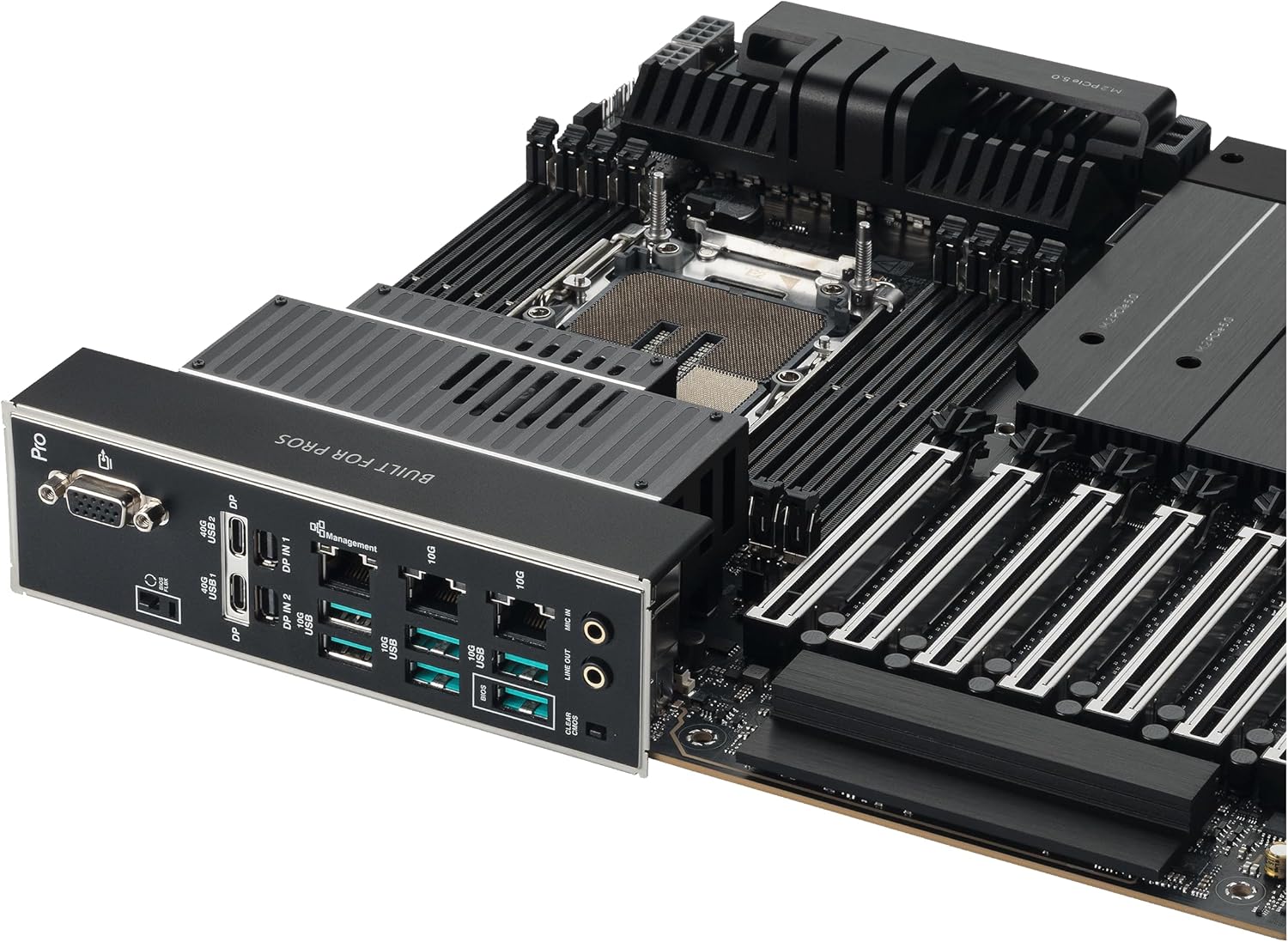

ASUS Pro WS W890E-SAGE SE Intel? W890 (LGA 4710-2) EEB Workstation Motherboard, PCIe 5.0 x16, M.2, MCIO, SlimSAS, 2X 10Gb LAN, Server-Grade Remote Management, 16+(2+2)+1+2 Stages, USB4?, USB Type-C
Product details
| Management number | 218502868 | Release Date | 2026/05/03 | List Price | $467.52 | Model Number | 218502868 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
The ASUS Pro WS W890E-SAGE SE workstation motherboard features Intel W890 chipset, DDR5 R-DIMM with XMP, 7 PCIe 5.0 slots, dual 10Gb LAN, four M.2 PCIe 5.0 slots, USB4 Type-C, BMC AST2600, and advanced cooling—built for AI workloads, machine learning, scientific computing, and high-performance simulations.
- Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- Intel LGA 4710-2 socket: Ready for Intel Xeon? 600 Processors for Workstation
- CPU and memory overclocking: The performance of ECC R-DIMM DDR5 memory (1DPC) is further enhanced by the exclusive NitroPath DRAM technology
- Ultrafast connectivity: 7 PCIe 5.0 x16 slots, Dual Intel E610-XAT2 10Gb LAN, 4 M.2, MCIO, 2 SlimSAS, and USB4? and USB 20Gbps Type-C

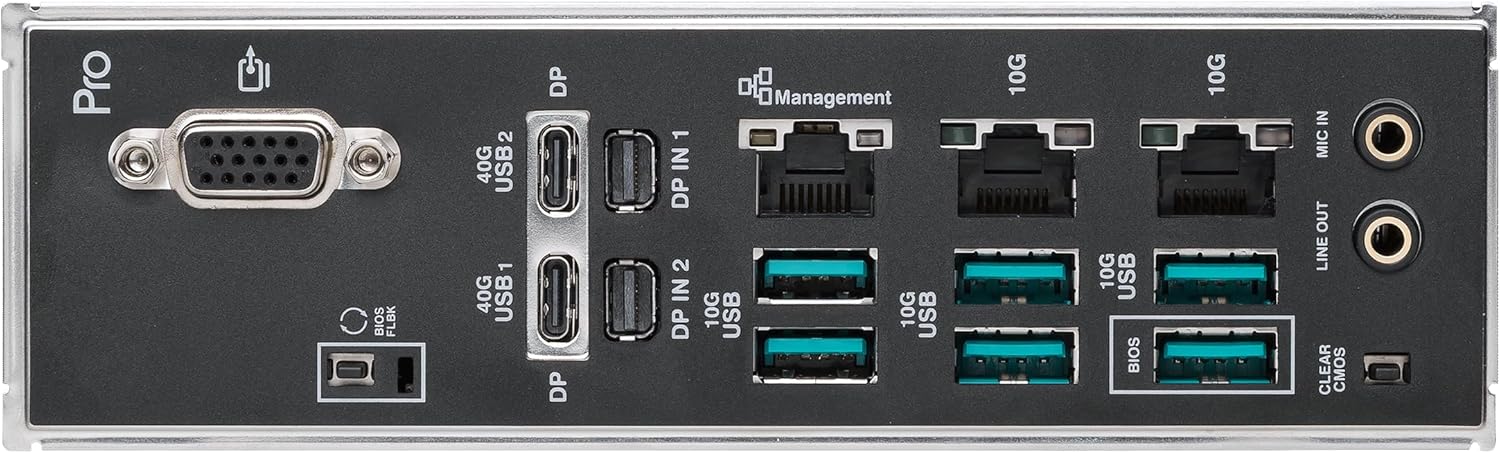

- Server-grade IPMI remote management: Hardware and software-level with a dedicated LAN port link to AST2600 BMC controller, plus a real-time monitoring and management software – ASUS Control Center Express
- Robust power and thermal design: 16+(2+2)+1+2 power stages, multiple 8-pin and CPU/PCIe power connectors for dual PSU operation, innovative active cooling for VRM, chipset, M.2, and memory
- Trusted stability: Highly compatible with the latest technologies with solid QVL list and tested for 24/7 operation, validated for extensive compatibility
| UPC | 199291389373 |
|---|---|
| Brand | ASUS |
| Platform | Windows 11 |
| CPU Model | Intel Xeon |
| Model Name | PRO WS W890E-SAGE SE |
| Unit Count | 1.0 Count |
| Item Weight | 2.5 Pounds |
| Chipset Type | INTEL W890 |
| Manufacturer | ASUS |
| Model Number | PRO WS W890E-SAGE SE |
| BuiltIn Media | 1 x 4-pin to 24-pin adapter cable for ATX power connector, 1 x ACC Express activation key card, 1 x AMI license sticker, 1 x AngleBoost Fan Kit, 1 x E2A CPU carrier (for Intel? Xeon? 690 Series Processors), 1 x E2B CPU carrier (for Intel? Xeon? 670/650/630 Series Processors), 1 x M.2 Q-Latch package(s), 1 x M.2 backplate rubber package(s), 1 x Q-connector, 1 x Quick start guide, 1 x Screw package for M.2 Key E, 1 x Thermistor cable pack, 2 x SATA 6Gb/s cables, 2 x Thermal pad for M.2 22110, Additional Cooling Kit:, Cables:, Documentation:, Miscellaneous: |
| Chipset Family | Intel |
| Mfr Part Number | ASUS Pro WS W890E-SAGE SE |
| Number of Ports | 28 |
| Total Usb Ports | 15 |
| Processor Socket | LGA 4710-2 |
| Total PCIe Ports | 7 |
| Total SATA Ports | 4 |
| Compatible Devices | Personal Computer |
| Warranty Description | 3 Years |
| Compatible Processors | Intel Socket LGA4710-2 for Xeon 600 Processors for Workstation |
| RAM Memory Technology | DDR5 |
| Memory Slots Available | 8 |
| Graphics Card Interface | PCI Express |
| Number of Ethernet Ports | 1 |
| Item Dimensions L x W x H | 12"L x 13"W x 1.5"H |
| Main Power Connector Type | 24-Pin |
| Total Number of HDMI Ports | 1 |
| System Bus Standard Supported | Serial ATA/600 |
