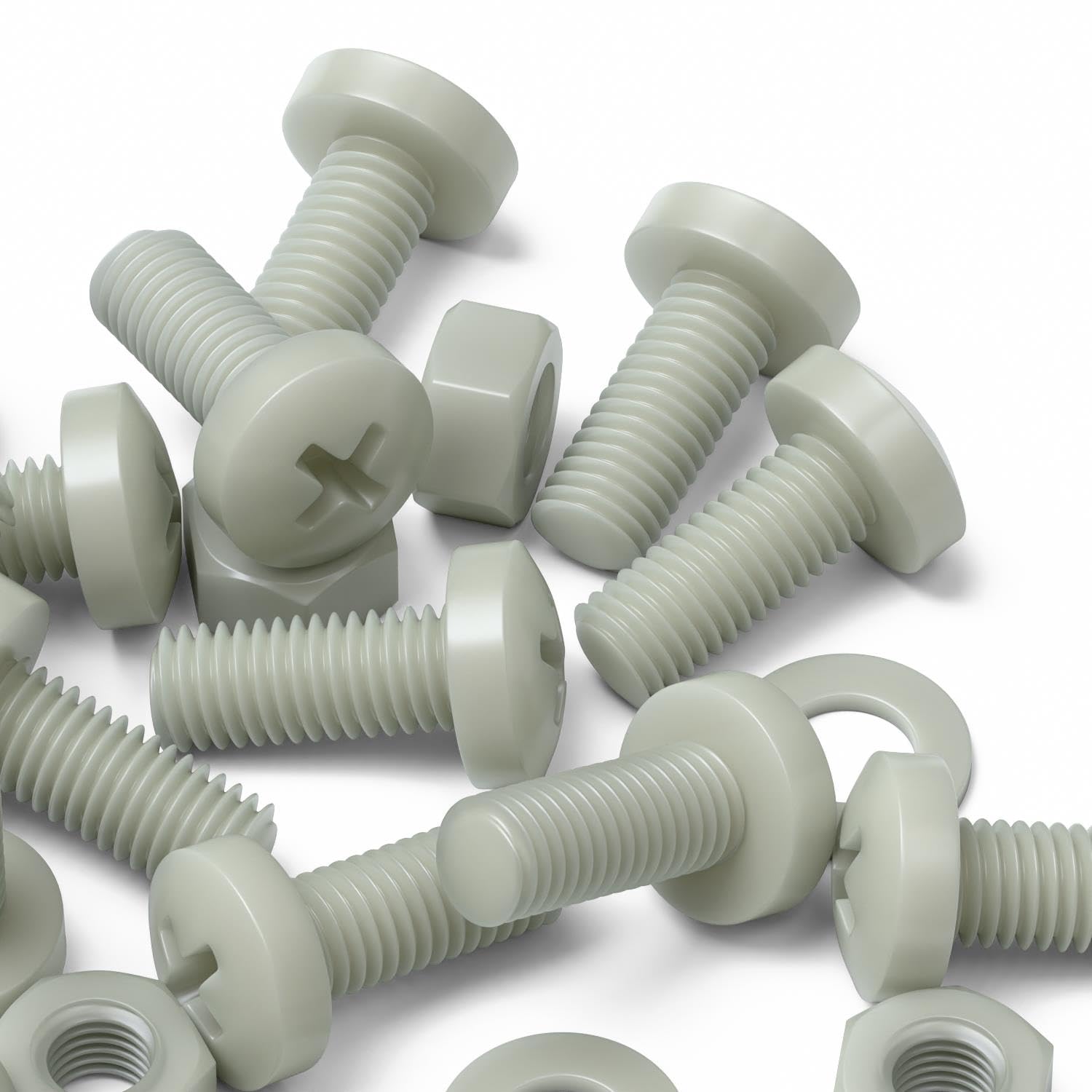

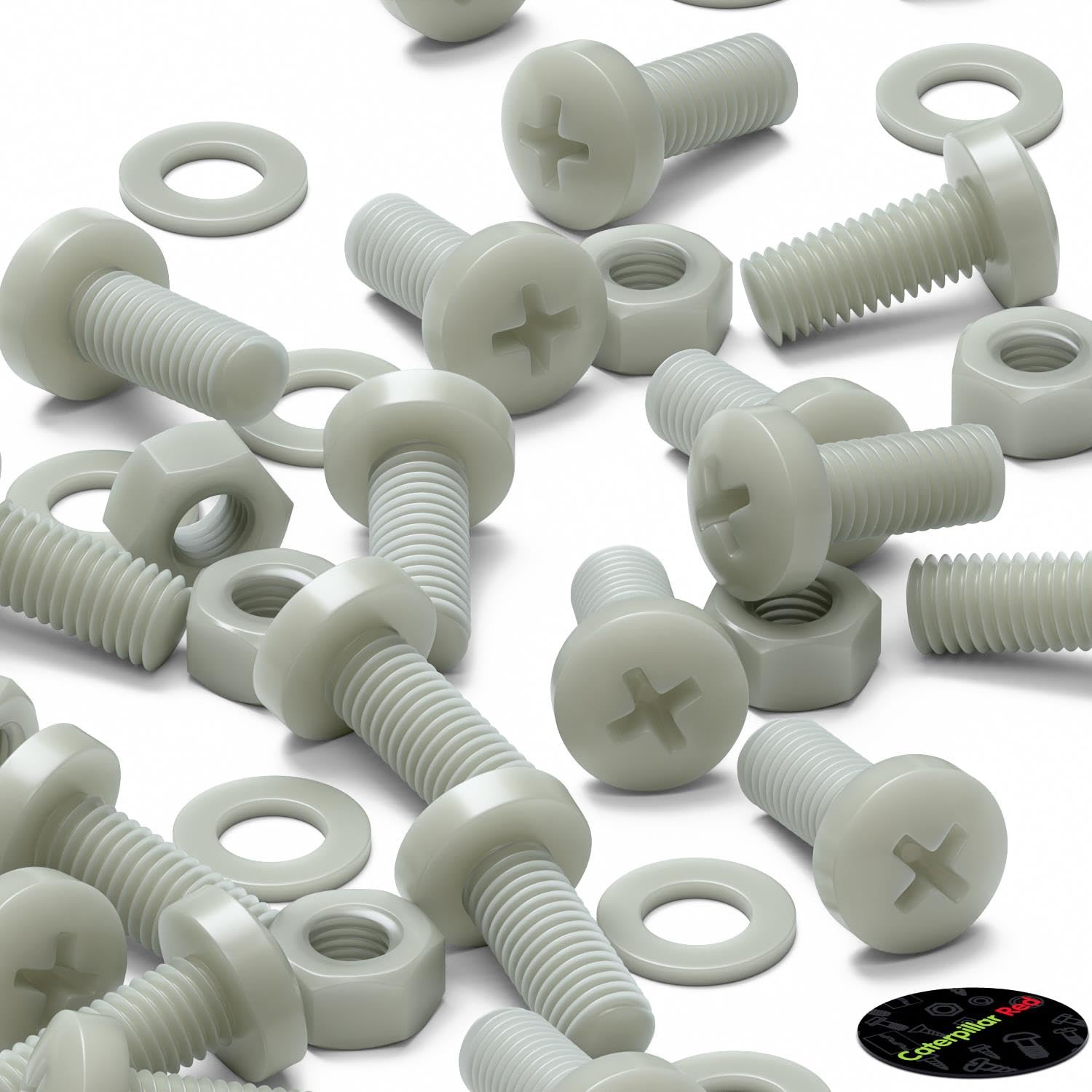

50 x Glass Filled Reinforced Super Nylon Pan Head, Crosshead Machine Screws, M8 x 20mm, Plastic Nuts and Bolts, Washers, (5/16 x 25/32 in)
Product details
| Management number | 218159138 | Release Date | 2026/05/03 | List Price | $10.80 | Model Number | 218159138 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Please refer to the technical image for size details.||- Product Specifications - ||Product_SKU: 632. Product_Type: Pan Cross Head Bolts. Product_Size: M8 x 20mm. Product_Color: Natural. Product_Quantity: 50 Pack. Product_Pitch (mm): 1.25mm. Product_Length (mm): 20mm. Product_Width (mm): 8mm. Product_Depth/Thickness (mm): 8mm. ||- Reference Details - ||Primary_Material: Nylon PA 66 / 50% Glass Fibre Reinforced. Product_Pitch: 0.049 inches. Product_Length: 0.787 inches. Product_Width: 0.315 inches. Product_Depth/Thickness (inches): 0.315 inches. ||- Additional Specifications - ||Bolt Product Image Drawing References: Stock Code: CR03038PA+GFHead/Drive Type: Cross Pan Head Boltsize: M8 x 20D: 8 mmPitch: 1.25 mmL: 20 mmHD: 15.79 mmHH: 5.85 mm. ||- Additional Description - While the melting point remains mostly unchanged, PA66+GF’s heat deflection temperature is superior to that of PA66, meaning the composite can withstand higher temperatures before it begins to deform under load. The composite demonstrates reduced moisture absorption, a significant improvement over PA66’s susceptibility to moisture. Common applications include automotive components, industrial machinery, and consumer goods requiring high strength and thermal resistance. Hex Bolts & Screws also known as plastic bolts, plastic screws, plastic bolt, plastic screw.||
- 50x Bolts, 50x Nuts, 50x Washers. Material: PA 66 / 50% GF. Type: Pan Cross Head Bolts. Length: 20mm. Diameter: 8mm. Pitch: 1.25mm. SKU: 632.
- Our 50% glass fibre (GF) filled material has superior tensile, flexural and impact strength, enabling it to be used in load bearing applications.
- Glass fiber reinforcement was introduced to PA66 to improve its mechanical properties and thermal stability, enabling its use in demanding applications.
- The addition of glass fibers enhances the heat deflection temperature, enabling the material to perform reliably at elevated temperatures.
- Cross drive design for screwdriver installation and wide underside for even load distribution.
| Brand | Caterpillar Red |
|---|---|
| Color | Natural |
| Model | 632 |
| Size Name | M8 x 20mm |
| Unit Count | 50.0 Count |
| Item Weight | 0.1 Kilograms |
| Part Number | 632 |
| Finish Types | Finished |
| Manufacturer | Caterpillar Red |
| Fastener Type | Standard |
| Material Type | Plastic |
| Item Dimensions | 0.79 x 0.31 x 0.31 inches |
| Number Of Items | 50 |
| Number of Pieces | 50 |
| Screw Head Style | Pan |
