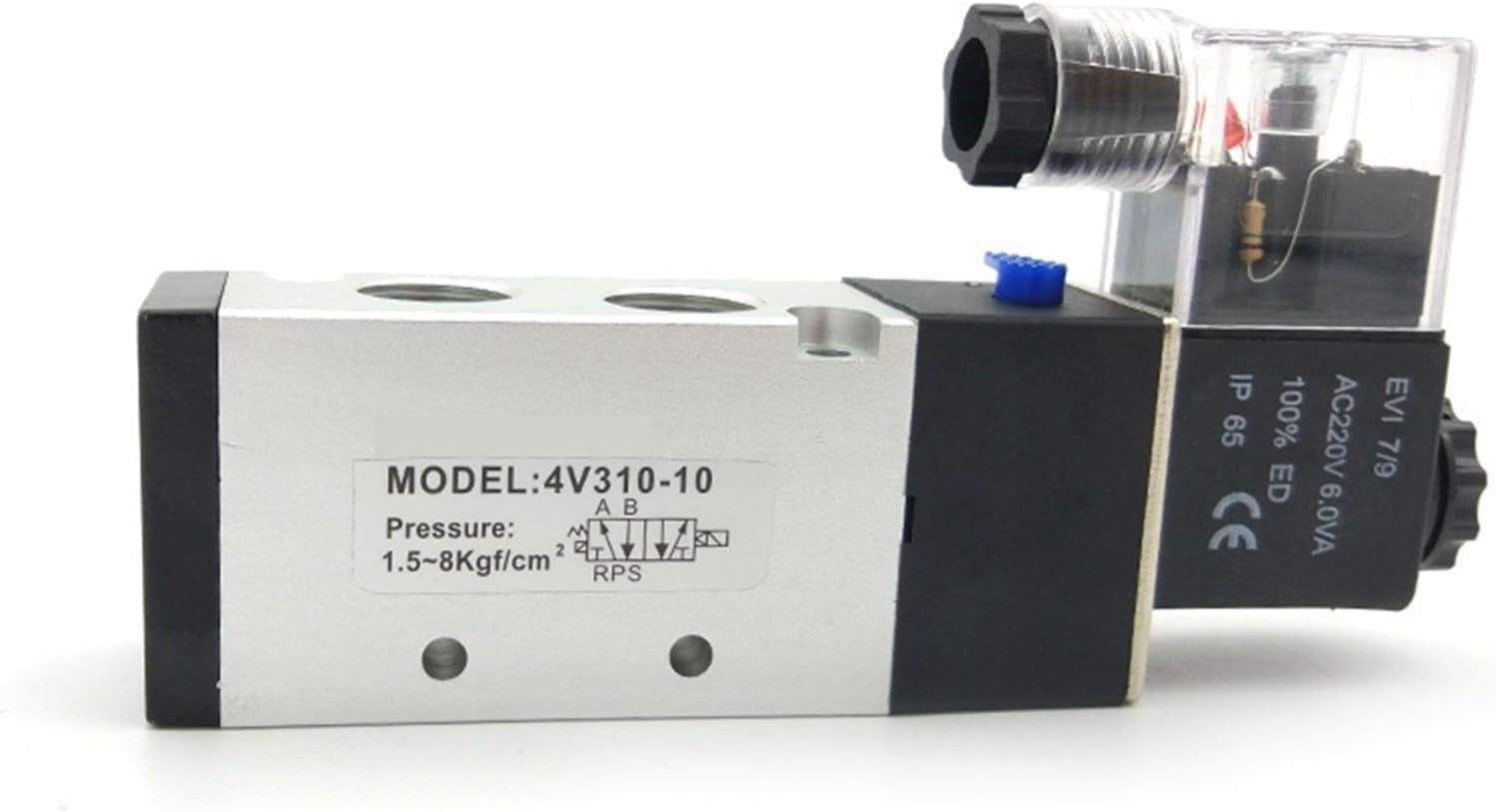

4V310 4V320 4V330 Air Solenoid Valve G1/4 G3/8 Electromagnetic Valve Type Pneumatic Valve(4V330C-08G1-4 3-5Way,DC12V)

Solenoid ValvesThe images shown are not all the actual item and are for your reference only 4V310 4V320 4V330 Air Solenoid Valve G1/4 G3/8 Electromagnetic Valve Type Pneumatic Valve Product 1, Double control solenoid valves have memory function.2, Internal hole adopts special processing technology which has littleattrition friction ,low start pressure and long service life.3, No need to add oil for lubrication.4, It is available to from integrated valve group with the base to saveinstallation space.5, Affiliated manual devices are equipped to facilitate installation and debugging6, Several standard voltage grades are optional. Model 4V310-08 4V320-08 4V330C-08 4V330E-08 4V330P-08 4V310-10 4V320-10 4V330C-10 4V330E-10 4V330P-10 4A310-08 4A320-08 4A330C-08 4A330E-08 4A330P-08 4A310-10 4A320-10 4A330C-10 4A330E-10 4A330P-10 A number of pass Two position five-way Three position five -way Two position five-way Three position five-way Effective sectional area 25mm2;(CV=1. 40 ) 18mm2;(CV = 1 .00 ) 30mm2;(CV=1. 68) 18mm2;(CV=1. 00) Model 3V310-08 3V320-08 3A310-08 3A320-08 3V310-10 3V320-10 3A310-10 3A320-10 A number of pass Two position three-way Two position three-way Effective sectional area 25mm2;(CV=1. 40) 30mm2;(CV=1. 68) Port size Air inlet=Air =Exhaust=G1 / 4 " Air inlet=Air =G3 / 8 " Exhaust= G1 / 4 " Working medium 40 Filtered Air Action mode Internally plot-actuated The use of pressure 0. 15~ 0. 8MPa Max. poof pressure 1 . 2MPa Working temperature -5 ~ 50 Voltage range ± 10% of rated voltage Power consumption AC: 5. 5VA DC: 4. 8W Insulation& Protection class Class F IP65
